Reduce Your Costs with Long-Life Molds
- Lowers Per-part Cost With Extended Mold Life
- Minimizes Downtime, Maximizes Equipment Utilization
- Ensures Consistent Product Quality Reliably
- Reduces Waste, Advances Sustainable Manufacturing
Why Are Long-life Molds So Important?
Are you frequently troubled by these problems?
Unexpected downtime in production, frequent mold repairs and maintenance, product burrs/dimensional instability due to mold wear, and project profits eroded by premature mold scrapping.Choosing long-life molds can reduce these problems by 95%.

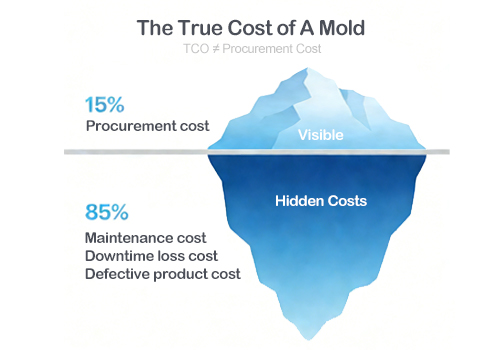

Reduce The Total Cost Of Ownership (TCO)
Total Cost of Molds = Procurement Cost + Maintenance Cost + Downtime Loss Cost + Defective Product Cost.
Industry data shows that downtime due to insufficient mold life accounts for an average of 15% of production time. Based on an 8-hour shift, this translates to an annual cost loss of over $45,000 per machine.
By significantly reducing the latter three costs, lower unit costs and higher return on investment can be achieved.
Stabilize Product Quality At The Source
Mold wear caused the product dimensional tolerance rate to increase by 300% (compared to the initial stage of the product life), resulting in a scrap rate increase from 2% to over 8%, thus reducing yield indicators.
Industry Trends
In high-end fields such as new energy vehicles and medical equipment, mold life has increased from the industry benchmark of 500,000 cycles to 1.5 million+ cycles (ISO 13379-2022 standard), and molds with short lifespans will be eliminated from the market.
Core Technology Solutions For Long-life Molds
Materials Science
- Special hot-work die steels (such as H13 with micro-alloying treatment) are selected, increasing hardness to 52-56 HRC and improving wear resistance by 40% (compared to conventional P20 steel).
- Customized Technology: Gradient heat treatment process (non-uniform quenching) eliminates internal stress peaks and prevents early cracking.
Mold Structure Design
- Stress Optimization Design: Optimizing gate location and runner through CAE simulation (ANSYS) reduces local stress concentration by up to 60%.
- Innovative Insert Structure: Special inserts (such as cavity inserts) are used in critical wear areas, extending mold life by 3 times.
Surface Strengthening Treatments
- PVD Coating Technology: Surface hardness reaches 3500 HV, friction coefficient reduced to 0.15 (compared to 0.35 for conventional molds), reducing sticking and tearing.
- TD Treatment (Carbonitriding): For PC/ABS injection molding, inhibits corrosive degradation, increasing lifespan by 25%.
Precision Manufacturing & Simulation Verification
- Mold Life Verification Standard: Moldflow Analysis to Predict Stress Distribution → Accelerated Fatigue Testing → Mass Production Verification (Customer Field Data).
- Multi-axis CNC, wire EDM, EDM and other equipment ensure microscopic precision

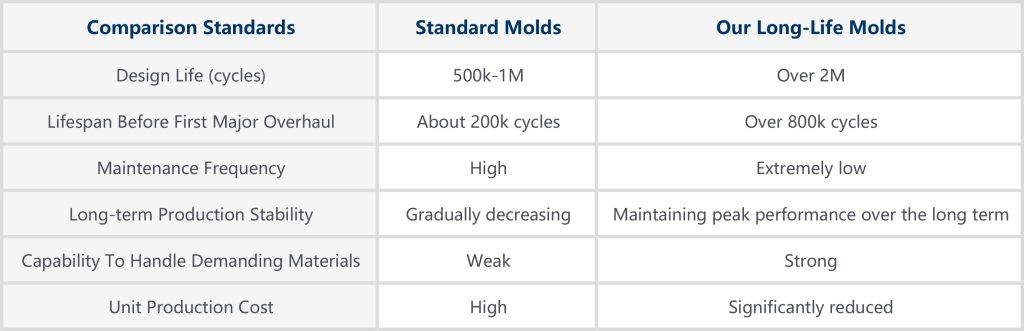

Differences Between Standard Molds and Long-Life Molds
Mold life is a core variable affecting injection molding production costs and quality stability. Standard molds face the risk of precipitous lifespan decline and quality fluctuations during long-term production, while high-life molds, through synergistic optimization of materials, structure, and surface technologies, achieve a 300% increase in lifespan, a 33% reduction in unit cost, and ensure a stable accuracy retention rate of over 92%.
|
Comparison Standards
|
Standard Molds
|
Our Long-Life Molds
|
|---|---|---|
|
Design Life (cycles)
|
500k-1M
|
Over 2M
|
|
Lifespan Before First Major Overhaul
|
About 200k cycles
|
Over 800k cycles
|
|
Maintenance Frequency
|
High
|
Extremely low
|
|
Long-term Production Stability
|
Gradually decreasing
|
Maintaining peak performance over the long term
|
|
Capability To Handle Demanding Materials
|
Weak
|
Strong
|
|
Unit Production Cost
|
High
|
Significantly reduced
|

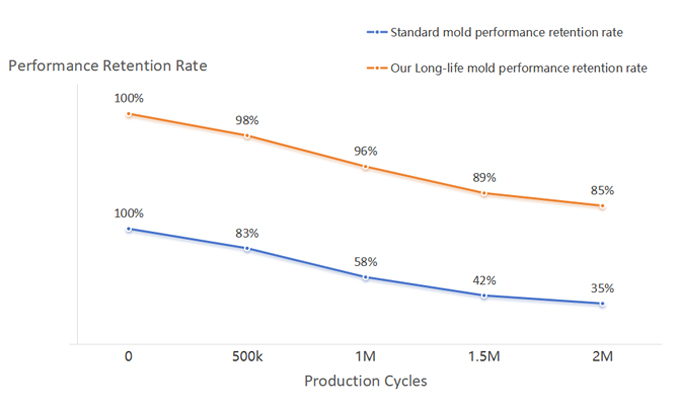

Long-term Production Stability
Comprehensive comparison
Long-term Production Stability
Key Performance Comparison
The fundamental factor determining whether a mold can serve you stably and sustainably over the long term lies in its core intrinsic performance. By fundamentally reshaping key performance indicators, molds can be transformed from consumables into durable production assets.
Wear Resistance
(Based on surface hardness/coating)
- Standard molds (benchmark): 100%
- Our Long-life molds: 250%-400%
Example solution: Through high-end steel + PVD coating, hardness is increased from HRC 50-55 to HRC 70+ or equivalent Vickers hardness.
Corrosion Resistance
(Based on salt spray testing)
- Standard molds (benchmark): 100%
- Our Long-life molds: 300%-500%
Example solution: Using stainless steel or special coatings, salt spray resistance time is increased from tens of hours to hundreds of hours.
Thermal Fatigue Strength
(Resistance to Thermal Alternation)
- Standard molds (benchmark): 100%
- Our Long-life molds: 150%-200%
Example solution: Through optimized heat treatment and material homogenization, crack initiation is significantly delayed.
Customized Solutions For Specific Industries
Industry characteristics dictate mold life requirements. We provide precise matching solutions for materials, structures, and processes to address specific working conditions in fields such as automotive, home appliances, and medical, ensuring mold performance is deeply adapted to application scenarios.
Automotive Components
- Challenges: Long lead times, high volume, and high consistency requirements; materials often contain glass fiber.
- Our Solution: High-wear-resistant steel, efficient sequential valve hot runner system, and special coating surface treatment ensure dimensional stability at millions of cycles.
Case Study:
Large structural components (such as bumpers) need to withstand 1M+ cycles; conventional molds are prone to deformation.
A modular insert design + conformal cooling water channels achieve a lifespan of 2M cycles with a precision retention rate of 90%+.
Home Appliances
- Challenges: High-gloss, flawless finish is required for exterior components, while internal structural components require precise fit.
- Our Solution: Mirror polishing technology and efficient conformal cooling channel design ensure both appearance quality and production efficiency.
Case Study:
Control panels (such as air conditioner panels) require high surface finish; conventional molds are prone to weld lines.
Ultra-precision polishing + micro-venting structure, lifespan of 1.8M cycles, surface roughness Ra≤0.1μm (meets ISO 12103 standard).
Medical Supplies
- Challenge: Extremely high requirements for cleanliness and corrosion resistance; molds must be easy to clean and maintain.
- Our Solution: Use corrosion-resistant stainless steel, special surface polishing and coating (medical-grade), and a design with no blind spots.
Case Study:
Syringe components must be protected from metal ion contamination.
Chromium-free PVD coating + pure titanium inserts, lifespan of 1.5 million cycles, passed ISO 10993 biocompatibility test.
Industrial Equipment (Heavy-Duty Environment)
- Challenges: High component strength, complex materials, and molds requiring high injection pressure.
- Our Solution: High component strength, complex materials, and molds requiring high injection pressure.
Case Study:
Large gear molds need to withstand high impact loads; conventional molds are prone to chipping.
Tungsten carbide composite inserts + dynamic stress dispersion structure, lifespan of 2.5M cycles, and a 50% improvement in impact toughness.

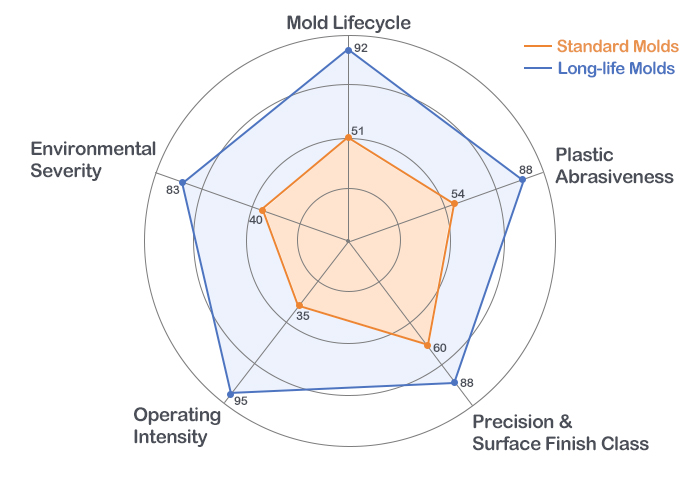

How To Choose The Best Long-life Mold For You?
Different motor applications place vastly different demands on molds. From high-speed new energy vehicles to long-running industrial equipment, and even precision, quiet home appliances, our mold technology is deeply embedded in the manufacturing of core components across various industries. No matter your field, you’ll find a customized solution at Wontech.
01.Assessing Production Needs
What is your total expected production volume (number of cycles)?
If the target is over 1M cycles, the cost per cycle for a long-life mold will be significantly lower than that of a standard mold.
02.Material Properties Analysis
What type of plastic are you processing? Engineering plastics, modified plastics, or composite plastics?
Different plastics exhibit vastly different levels of wear and tear on molds.
03.Reviewing Product Requirements
What are the requirements for dimensional accuracy and surface finish?
Such products require molds with extremely high rigidity, a stable temperature control system, and advanced processing techniques to ensure long-term consistency.
04.Production Planning
24/7 continuous production, or multi-batch, small-volume production? What is the level of automation?
Continuous production places stringent demands on mold cooling efficiency, thermal fatigue resistance, and reliability.
05.Environmental Considerations
In what environment will your product operate?
Special steel selection and technical processing are used to ensure that injection molded products have inherent environmental adaptability.
How To Choose The Best Long-life Mold For You?
Different motor applications place vastly different demands on molds. From high-speed new energy vehicles to long-running industrial equipment, and even precision, quiet home appliances, our mold technology is deeply embedded in the manufacturing of core components across various industries. No matter your field, you’ll find a customized solution at Wontech.
01.Assessing Production Needs
What is your total expected production volume (number of cycles)?
If the target is over 1M cycles, the cost per cycle for a long-life mold will be significantly lower than that of a standard mold.
02.Material Properties Analysis
What type of plastic are you processing? Engineering plastics, modified plastics, or composite plastics?
Different plastics exhibit vastly different levels of wear and tear on molds.
03.Reviewing Product Requirements
What are the requirements for dimensional accuracy and surface finish?
Such products require molds with extremely high rigidity, a stable temperature control system, and advanced processing techniques to ensure long-term consistency.
04.Production Planning
24/7 continuous production, or multi-batch, small-volume production? What is the level of automation?
Continuous production places stringent demands on mold cooling efficiency, thermal fatigue resistance, and reliability.
05.Environmental Considerations
In what environment will your product operate?
Special steel selection and technical processing are used to ensure that injection molded products have inherent environmental adaptability.
