Integrated Design That Makes Robotic Vacuum Cleaners Smarter

With the increasing popularity of smart home appliances, the market’s core pursuit has shifted from single-function to multi-functional integration. For manufacturers, the ability to transform complex structures into tangible products through sophisticated integrated design has become an important criterion for customers to evaluate their capabilities.

While robotic vacuum cleaners are rapidly iterating towards higher intelligence, they still suffer from structural pain points: the assembly of multiple parts leads to generally excessive operating noise (above 60dB), dirt and grime easily accumulate in the seams of the outer shell, and disassembly and maintenance are cumbersome for users; on the manufacturing side, there are challenges such as a large number of parts, difficulty in controlling assembly precision, fluctuating yield rates, and cost pressures. The industry trend is clearly shifting towards “quiet operation, integrated structure, and user experience enhancement”—integrating functional modules through innovation at the mold source, reducing physical gaps and vibration sources, has become a key path for high-end products to break through homogenization and build core competitiveness.

We received a new project request from a client who is upgrading their smart home system. They want us to provide a high-end manufacturing solution for their robotic vacuum cleaner, differentiating it from the homogenized products on the market.

Challenge

Traditional robotic vacuum cleaners are assembled from over 20 individual parts: the base, motor bracket, and wiring channels are each molded separately and then assembled. Slight collisions between parts during operation produce unpleasant noises; dust accumulates in the seams of the casing, making cleaning difficult; and repairs require a screwdriver, which is too cumbersome. Many families even “hide” their robots in the storage room—technology should serve life, not create problems.

Our Solution

1. Integrated Design

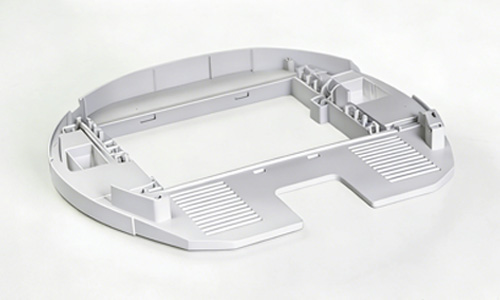

A complex mold system incorporating multiple precision moving sliders and angled ejectors was designed. After plastic injection, a single injection molding process automatically creates all the intricate internal structures and mounting positions.
The dimensional accuracy of the bearing positions was specifically optimized to ensure a seamless installation of the motor and wheels, eliminating the need for subsequent machining.
Smart Flow System
Bio-Mimetic Cooling
Hidden Reinforcement

2. Noise design

Precision Overmolding

Mold features custom pockets for rigid skeleton → soft TPE flows precisely around contact points.

Honeycomb Cushion

Micro-hexagonal cells inside rubber layer—dissipating vibration energy efficiently.

Food-Grade Safety

FDA-certified TPE material—odorless, non-toxic, safe even if baby crawls nearby.

3. Easy to disassemble

Golden Angle Snap: Release angle optimized to 15° after 20 simulations—opens with gentle press; satisfying "click" confirms secure closure.
Ergonomic Guide: 0.3mm micro-grooves + 0.2mm rounded edges guide fingers naturally to pressure points.
5,000-Cycle Proof: Tested for daily disassembly over 5,000 cycles; snap elasticity retains >95% strength.

Results

Real Innovation Is Making Life Gently Better

Are your products facing the same issues? Contact us for a customized solution.
