Injection Molding Service

Q: “What are your production scheduling and Minimum Order Quantity (MOQ) policies for small to medium-volume orders?”

We recognize the need for flexibility in the market and actively support small to medium-volume orders with adaptable policies tailored for startups and established businesses alike.Regarding Minimum Order Quantity (MOQ), we typically view it from two angles: Tooling MOQ and Production MOQ. For tooling, we generally don’t have an MOQ, but the mold cost needs to be covered. For production MOQ, we are highly flexible. For small and medium runs, we typically set the MOQ at an economically viable production quantity. This covers the base costs of machine setup, preparing specific materials, and conducting quality inspections. This quantity could be a few thousand pieces, depending on the part and material. We understand you may not need massive inventory, so we aim to find a balance that makes economic sense for both parties. For projects with long-term potential, we are open to discussions and can offer more competitive MOQs.Concerning Production Scheduling, we manage our capacity through a sophisticated ERP system. Once your order is confirmed, it is slotted into our master production schedule. We provide you with a clear timeline encompassing mold readiness (if applicable), raw material procurement, and production. For repeat orders, we securely store your dedicated mold and production process documentation, ensuring consistency across production runs. We can schedule production based on your forecasts or on a “made-to-order” basis, providing supply chain flexibility. Our goal is to build a long-term partnership, and we strive to make our policies, especially for small and medium batches, as flexible and transparent as possible.

Q: “What experience and capabilities do you have for handling products with complex designs?”

Complex part designs are where our engineering expertise truly shines. We possess extensive experience and advanced capabilities to tackle these challenges head-on.In terms of engineering experience, our team has handled numerous complex designs, such as: parts with deep ribs and thick sections prone to sink marks, which we mitigate by optimizing gate location, cooling, and using techniques like gas-assist molding; precision components with tight tolerances, which we maintain using high-precision molds, strict process control, and Statistical Process Control (SPC); and parts with undercuts, which require complex mold actions like sliders and lifters – our specialized mold designers are adept at engineering these moving mechanisms for successful part ejection. Furthermore, for small or fragile parts, we utilize three-plate molds or hot runner systems to minimize gate vestige and enhance automation.Regarding technical capabilities, we rely on advanced tools: We use mold filling simulation software like Moldflow to simulate the plastic flow, packing, and cooling phases before cutting steel. This allows us to predict and resolve potential issues like short shots, air traps, weld lines, and warpage virtually. This proactive approach optimizes the mold design and process parameters, saving significant time and cost. Our workshop is equipped with 5-axis CNC machining centers, precision wire EDM, and sinker EDM machines, enabling us to fabricate molds with complex geometries and high surface finishes. We are committed to partnering with our clients to transform intricate designs into high-quality, manufacturable injection molded parts.

Q: "What dimensional tolerances can you guarantee for your injection molded products?"

Our standard molding tolerance is ±0.05mm, precision molding achieves ±0.01mm, and ultra-precision special projects can reach ±0.005mm. Tolerance capability depends on material properties, product design, and mold quality. We conduct DFM analysis during project initiation to establish achievable tolerances. To ensure precision, we employ scientific molding methods with cavity pressure sensors and closed-loop control systems for real-time parameter adjustments.All precision components are measured in a temperature-controlled environment (20±1°C) using Zeiss CMM equipment. We provide full dimensional reports and implement 100% automated visual inspection for critical dimensions to guarantee batch consistency and reliability

Q: “How do you handle quality issues during the injection molding process?”

Our quality management system is built on IATF 16949 standards, implementing a four-layer protection mechanism: prevention-detection-response-improvement. At the prevention level, we conduct comprehensive process FMEA analysis to identify potential risks and develop control plans before production begins. For detection, beyond real-time monitoring of over 30 process parameters, we deploy AI-powered vision inspection systems capable of identifying surface defects as small as 0.01mm invisible to the human eye. Our three-tier response team (operators-process engineers-quality director) ensures problem handling initiates within 2 hours with preliminary assessment completed within 4 hours. For batch issues, we implement a “red-yellow-green” alert system, with the highest level triggering cross-functional war room meetings. Root cause analysis employs the 8D methodology combined with our injection molding big data analytics platform for precise problem identification. Corrective actions undergo DOE validation testing before implementation to ensure effectiveness. We provide a transparent issue tracking portal where clients can monitor resolution progress in real-time. After each quality issue closure, we update our FMEA database and control plans, transforming experience into preventive capability. Over the past three years, our customer complaint rate has decreased by 78%, demonstrating the effectiveness of our quality system.

Q: “How long does it take from mold completion to mass production?”

From mold completion to stable mass production typically requires 2-4 weeks, depending on product complexity, material characteristics, and quality standards. Our four-phase process ensures a smooth transition: Phase one (3-5 days) involves mold validation and process development, including dimensional verification, Moldflow simulation comparison, gate balance testing, and 10-15 rounds of parameter optimization to determine optimal temperature and pressure profiles. Phase two (5-7 days) executes trial production of 300-500 samples for comprehensive validation: critical dimensions measured via CMM, material physical property testing, functional assembly verification, while establishing First Article Inspection Reports (FAIR) and control plans. Phase three (7-10 days) conducts pre-production runs (1,000-5,000 pieces) to refine cycle times, optimize automation workflows, train core operators, implement Statistical Process Control (SPC) systems, and validate quality control checkpoints. The final phase (3-5 days) completes the PPAP documentation package (including dimensional reports, material certifications, performance test data) before customer approval and initial production launch. To accelerate the process, we offer concurrent engineering: forming project teams during late mold manufacturing stages to pre-develop process parameters, design inspection fixtures, and plan logistics. For urgent projects, our express track process allocates additional engineering resources, extends working hours, and streamlines non-critical validations, compressing the total timeline to 10-12 days while maintaining uncompromised quality standards.

Q: “How to ensure product consistency in mass production?”

We ensure mass production consistency through a comprehensive, multi-tiered quality assurance system. First, we implement scientific molding methodology to establish robust process windows through Design of Experiments (DOE) to determine optimal parameter combinations, with cavity pressure sensors providing real-time monitoring of fill consistency for every shot. Second, our comprehensive preventive maintenance program includes daily precision calibration of all equipment, with critical components tracked through lifecycle management systems and replaced proactively before failures occur. Third, stringent material control protocols establish full traceability chains for all raw materials, including incoming physical property testing and material-specific drying procedures before processing to ensure consistent material behavior. Fourth, we deploy advanced Statistical Process Control (SPC) systems that monitor critical dimensions and performance characteristics with dynamic control limits, triggering automatic alerts and machine stops when variations exceed thresholds. Finally, our digital traceability platform captures over 300 process parameters for each production batch, storing data in the cloud for 15 years with secure client access to key quality metrics. Additionally, we conduct regular process capability analysis (targeting Cpk≥1.67) to continuously refine our process windows, ensuring consistent quality even during 24/7 continuous production runs at maximum capacity.

Q: “What factors affect the cost of injection molding?”

Injection molding costs are influenced by multiple interconnected factors that must be holistically evaluated. First, tooling investment constitutes the most significant upfront cost, determined by mold complexity, number of cavities, steel grade selection, and expected lifecycle—high-precision molds for million-cycle production require premium materials and craftsmanship, while prototype molds can utilize lower-cost alternatives. Material selection directly impacts per-part costs, with engineered resins like PEEK or glass-filled nylon costing 3-5 times more than commodity plastics like PP or ABS. Part geometry affects both mold complexity and cycle time—thick sections require longer cooling times, while undercuts necessitate complex slide mechanisms. Production volume dramatically influences unit economics through amortization; high volumes distribute tooling costs across more parts while enabling automation investments that reduce labor costs. Tolerance requirements also play a critical role—precision components requiring ±0.01mm tolerances demand specialized equipment, rigorous process control, and higher scrap rates. Secondary operations such as ultrasonic welding, pad printing, or assembly add substantial labor and equipment costs. Finally, geographical considerations including labor rates, energy costs, and regulatory compliance requirements create significant regional cost variations. Understanding these factors enables strategic cost optimization through design simplification, smart material selection, and production volume planning—our engineering team works with clients during the design phase to identify cost-saving opportunities without compromising functionality or quality standards.

Wontech specialize in delivering precision injection molding solutions from concept to mass production. Leveraging advanced equipment, expert engineering, and rigorous quality control, we ensure every part achieves exceptional quality, consistency, and cost-effectiveness. We are committed to being your reliable one-stop manufacturing partner, regardless of your industry.

What Is Plastic Injection Molding?

Injection molding is the predominant manufacturing process for producing plastic parts. It accommodates a wide range of materials, with thermoplastic and thermosetting polymers being the most prevalent.

The process requires three fundamental components: an injection molding machine, raw plastic material, and a precision mold. Within the machine’s injection unit, the raw plastic is melted. This molten material is then forcibly injected into the mold cavity under high pressure. Heat is removed through cooling channels circulating water within the mold, causing the part to solidify. Once cooled, the mold opens, and the finished part is ejected. This entire cycle, typically completed in seconds, is repeated for high-volume production.The key steps in injection molding: Clamping,Plasticization & Metering,Injection,Cooling & Solidification,Ejection.

We have mastered various special injection molding processes, including:

Insert Molding
Overmolding
Gas-Assisted/Water-Assisted Injection Molding
Low-Pressure Injection Molding
BMC (Bulk Molding Compound) Injection Molding
Hot Runner Injection Molding

What Is Plastic Injection Molding?

We have mastered various special injection molding processes, including:

Insert Molding
Overmolding
Gas-Assisted/Water-Assisted Injection Molding
Low-Pressure Injection Molding
BMC (Bulk Molding Compound) Injection Molding
Hot Runner Injection Molding

When Injection Molding Delivers Maximum Value？

Plastic injection molding is the premier choice for high-volume production of quality parts, perfectly balancing design freedom, cost efficiency, and material versatility.Injection molding delivers maximum ROI when:

Annual production volume reaches tens of thousands of parts or more.
Part geometry is complex, featuring undercuts, thin walls, fine textures, or consolidated assemblies.
Material Versatility,from standard grades like ABS and PC to high-performance thermoplastics like PEEK.
Specific properties or finishes are required, such as flame retardancy, high strength, food-grade compliance, or specific colors and surfaces.
Application-critical consistency is needed, with every part demanding near-perfect dimensional stability and uniform physical properties (e.g., in automotive, medical, or electronics).

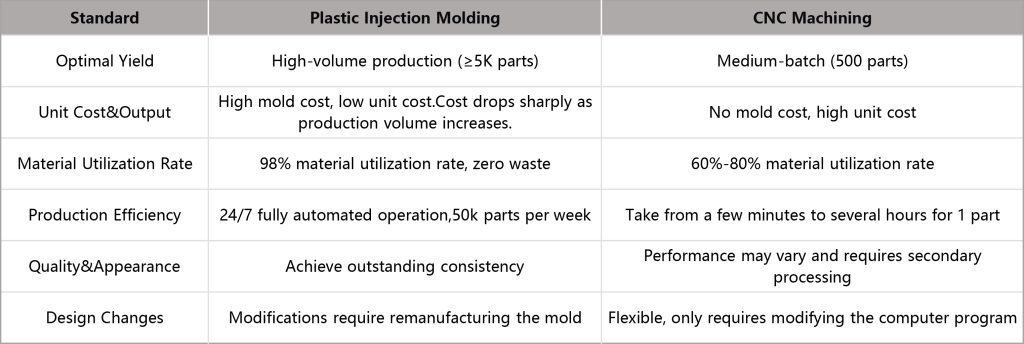

Plastic Injection Molding vs. CNC Machining

Standard	Plastic Injection Molding	CNC Machining
Optimal Yield	High-volume production (≥5K parts)	Medium-batch (500 parts)
Unit Cost&Output	High mold cost, low unit cost.Cost drops sharply as production volume increases.	No mold cost, high unit cost
Material Utilization Rate	98% material utilization rate, zero waste	60%-80% material utilization rate
Production Efficiency	24/7 fully automated operation，50k parts per week	Take from a few minutes to several hours for 1 part
Quality&Appearance	Achieve outstanding consistency	Performance may vary and requires secondary processing
Design Changes	Modifications require remanufacturing the mold	Flexible, only requires modifying the computer program

*The optimal strategy is to use CNC machining for prototyping to validate the design, and then proceed to injection molding for mass production once the design is confirmed.

Our Injection Molding Workflow

Our injection molding service encompasses every step, from initial design to volume production. Through scientific project management and expert process control, we ensure the efficient progression of your project, delivering precision parts with stable quality that meet expectations.

Mold Structure Design

We transform your part design into a functional mold blueprint. This critical phase focuses on gating, cooling, and ejection systems to ensure manufacturability, part quality, and long mold life.

Material Selection & Process Definition

We choose the optimal material and define precise process parameters (temperature, pressure, cycle time) based on your part’s functional requirements and properties.

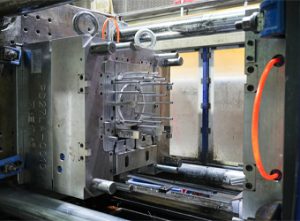

Injection Mold Manufacturing

Utilizing CNC, EDM, and high-precision grinding, we meticulously manufacture every mold component to the highest standards, ensuring accuracy and durability for mass production.

Mold Trial & Validation

We conduct initial mold trials to produce first samples. This step validates part dimensions, appearance, and identifies any necessary fine-tuning before full-scale production.

Mass Production & Post-Processing

Upon your approval, we will kick off full-scale automated production and handle all required post-processing,such as painting or assembly,and deliver finished parts to you.

Mold Maintenance & Lifecycle Management

Through post-maintenance, our programs prevent unexpected downtime, ensure consistent quality and extend mold life to reduce your total cost of ownership.

Our Injection Molding Workflow

Why Chooose Wontech for Injection Molding Services?

In today’s competitive global market, exceptional injection molding goes beyond simply shaping plastic—it requires engineering expertise, unwavering quality commitment, and a true understanding of your application challenges. Our unique strength lies at the intersection of cutting-edge technology and specialized material mastery, particularly in electric motor components and BMC applications. When you choose us, you’re not just getting parts—you’re gaining a strategic manufacturing partner dedicated to solving your challenges.

INSTANT QUOTES ON INJECTION MOLDING SERVICE

Micro & High-Precision Molding Expertise

Leveraging high-precision molds and rigorously controlled processes, we ensure every part achieves exceptional dimensional stability and consistency to meet your most demanding specifications.

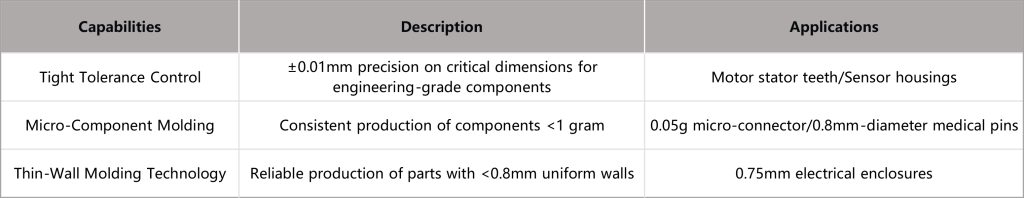

Capabilities	Description	Applications
Tight Tolerance Control	±0.01mm precision on critical dimensions for engineering-grade components	Motor stator teeth/Sensor housings
Micro-Component Molding	Consistent production of components <1 gram	0.05g micro-connector/0.8mm-diameter medical pins
Thin-Wall Molding Technology	Reliable production of parts with <0.8mm uniform walls	0.75mm electrical enclosures

Explore more injection molding case studies

Process & Efficiency Optimization

Proficient in various specialty materials and complex processes, we continuously optimize production through scientific molding, achieving lower costs and higher efficiency for you.Some of various optimization checks include:

Cycle Time Optimization: Mold cooling optimization, automated part removal, parallel operation workflows
Design of Experiments (DOE): To systematically define the robust process window by varying key parameters like melt temperature and holding pressure.
Rheological (Viscosity) Analysis: To define the optimal injection speed profile by characterizing the polymer's flow behavior.
Pressure drop studies to determine if the machine has enough pressure to move the screw at the set rate.
Optimize the holding time by conducting gate seal or gate-freeze studies.

First Pass Yield

0 %

Process Capability(Cpk)

> 0

Material Utilization

0 %

Lower Energy Use

0 %

Advanced Equipment & Capacity

Our fleet of modern injection molding machines, ranging from micro to large-tonnage, and robust supply chain enable quick response and stable delivery for high-volume orders.

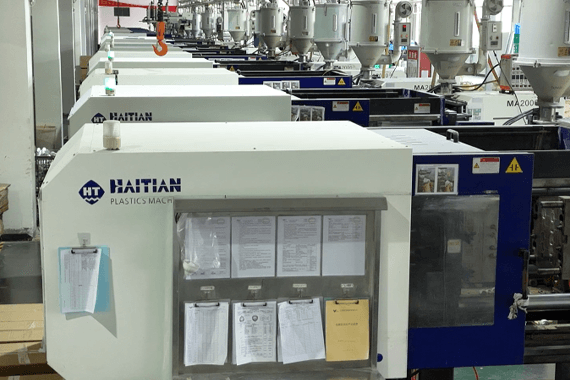

Injection Molding Equipment

Possess a range of injection molding machines, including hydraulic, all-electric, and large-tonnage models.
Product dimensions range from 1 x 1 x 5 mm to 1400 x 1200 x 600 mm.
Clamping Force Range: 90T – 1000T

Robust Production Capacity

Monthly Capacity: 2.5+ million mold cycles
Standard Lead Time: As fast as 1 week (volume-dependent)
Mold Changeover: < 30 minutes with Quick Mold Change Systems
Equipment Utilization Rate > 80%

Highly Automated Production

Robot Integration Rate > 90%
Automated Material Handling Systems in place
Mold Changeover: < 30 minutes with Quick Mold Change Systems
24/7 Production Monitoring

Quality Assurance System

“Quality isn’t merely an end-point inspection—it’s a core value embedded throughout the entire product lifecycle.”

Our certified quality system (ISO 9001, IATF 16949) integrates international standards with industry best practices, ensuring rigorous monitoring from raw material to final delivery. In precision molding, where a 0.01mm deviation is critical, we invest in state-of-the-art equipment and cultivate a “zero-defect” culture within our specialized teams. Through real-time data and continuous improvement, we guarantee that every component not only meets but exceeds the expectations of our global clients, building the solid foundation for lasting partnerships.

01. Advanced Testing Capabilities

02. Real-time Process Control

Process Control Flow:
Raw Material → FAI → Real-time SPC → Inspection → Finished Product

03. Quality Documentation & Standard

Click to View Quality Manual

04. Globally Recognized Certification Frameworks

Why Chooose Wontech for Injection Molding Services?

INSTANT QUOTES ON INJECTION MOLDING SERVICE

Micro & High-Precision Molding Expertise

Leveraging high-precision molds and rigorously controlled processes, we ensure every part achieves exceptional dimensional stability and consistency to meet your most demanding specifications.

Explore more injection molding case studies

Process & Efficiency Optimization

First Pass Yield

0 %

Process Capability(Cpk)

> 0

Material Utilization

0 %

Lower Energy Use

0 %

Cycle Time Optimization: Mold cooling optimization, automated part removal, parallel operation workflows
Design of Experiments (DOE): To systematically define the robust process window by varying key parameters like melt temperature and holding pressure.
Rheological (Viscosity) Analysis: To define the optimal injection speed profile by characterizing the polymer's flow behavior.
Pressure drop studies to determine if the machine has enough pressure to move the screw at the set rate.
Optimize the holding time by conducting gate seal or gate-freeze studies.

Advanced Equipment & Capacity

Our fleet of modern injection molding machines, ranging from micro to large-tonnage, and robust supply chain enable quick response and stable delivery for high-volume orders.

Injection Molding Equipment

Possess a range of injection molding machines, including hydraulic, all-electric, and large-tonnage models.
Product dimensions range from 1 x 1 x 5 mm to 1400 x 1200 x 600 mm.
Clamping Force Range: 90T – 1000T

Robust Production Capacity

Monthly Capacity: 2.5+ million mold cycles
Standard Lead Time: As fast as 1 week (volume-dependent)
Mold Changeover: < 30 minutes with Quick Mold Change Systems
Equipment Utilization Rate > 80%

Highly Automated Production

Robot Integration Rate > 90%
Automated Material Handling Systems in place
Mold Changeover: < 30 minutes with Quick Mold Change Systems
24/7 Production Monitoring

Quality Assurance System

“Quality isn’t merely an end-point inspection—it’s a core value embedded throughout the entire product lifecycle.”

01. Advanced Testing Capabilities

02. Real-time Process Control

Process Control Flow:
Raw Material → FAI → Real-time SPC → Inspection → Finished Product

03. Quality Documentation & Standard

Click to View Quality Manual

04. Globally Recognized Certification Frameworks

Matching the Ideal Material to Your Application

As our case studies demonstrate, successful products stem from an extreme pursuit of detail, and material selection is the first critical step determining performance, durability, and cost-effectiveness. We are not just a molder; we are your material consultant, committed to matching the right polymer to your specific application challenges.

Learn More about Materials

Matching the Ideal Material to Your Application

Learn More about Materials

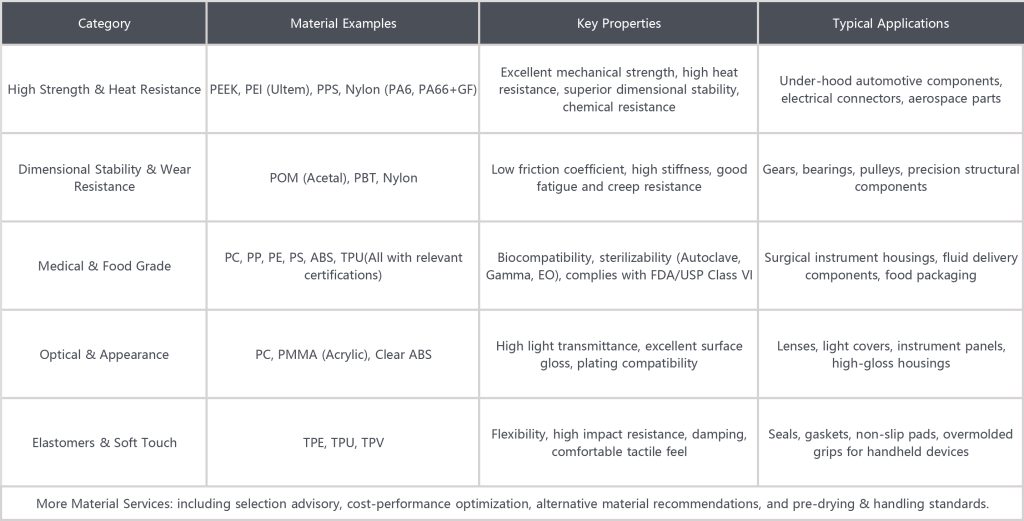

Category	Material Examples	Key Properties	Typical Applications
High Strength & Heat Resistance	PEEK, PEI (Ultem), PPS, Nylon (PA6, PA66+GF)	Excellent mechanical strength, high heat resistance, superior dimensional stability, chemical resistance	Under-hood automotive components, electrical connectors, aerospace parts

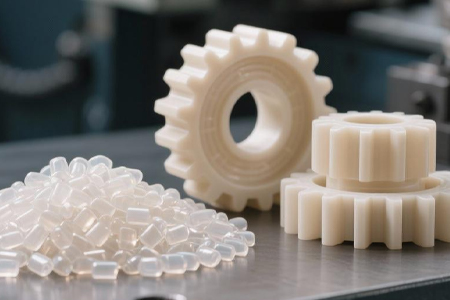

Dimensional Stability & Wear Resistance	POM (Acetal), PBT, Nylon	Low friction coefficient, high stiffness, good fatigue and creep resistance	Gears, bearings, pulleys, precision structural components
Medical & Food Grade	PC, PP, PE, PS, ABS, TPU(All with relevant certifications)	Biocompatibility, sterilizability (Autoclave, Gamma, EO), complies with FDA/USP Class VI	Surgical instrument housings, fluid delivery components, food packaging
Optical & Appearance	PC, PMMA (Acrylic), Clear ABS	High light transmittance, excellent surface gloss, plating compatibility	Lenses, light covers, instrument panels, high-gloss housings
Elastomers & Soft Touch	TPE, TPU, TPV	Flexibility, high impact resistance, damping, comfortable tactile feel	Seals, gaskets, non-slip pads, overmolded grips for handheld devices
More Material Services: including selection advisory, cost-performance optimization, alternative material recommendations, and pre-drying & handling standards.

Client Inquiries

“What are your production scheduling and Minimum Order Quantity (MOQ) policies for small to medium-volume orders?”

We recognize the need for flexibility in the market and actively support small to medium-volume orders with adaptable policies tailored for startups and established businesses alike.

Regarding Minimum Order Quantity (MOQ), we typically view it from two angles: Tooling MOQ and Production MOQ. For tooling, we generally don’t have an MOQ, but the mold cost needs to be covered. For production MOQ, we are highly flexible. For small and medium runs, we typically set the MOQ at an economically viable production quantity. This covers the base costs of machine setup, preparing specific materials, and conducting quality inspections. This quantity could be a few thousand pieces, depending on the part and material. We understand you may not need massive inventory, so we aim to find a balance that makes economic sense for both parties. For projects with long-term potential, we are open to discussions and can offer more competitive MOQs.

Concerning Production Scheduling, we manage our capacity through a sophisticated ERP system. Once your order is confirmed, it is slotted into our master production schedule. We provide you with a clear timeline encompassing mold readiness (if applicable), raw material procurement, and production. For repeat orders, we securely store your dedicated mold and production process documentation, ensuring consistency across production runs. We can schedule production based on your forecasts or on a “made-to-order” basis, providing supply chain flexibility. Our goal is to build a long-term partnership, and we strive to make our policies, especially for small and medium batches, as flexible and transparent as possible.

“What experience and capabilities do you have for handling products with complex designs?”

Complex part designs are where our engineering expertise truly shines. We possess extensive experience and advanced capabilities to tackle these challenges head-on.

In terms of engineering experience, our team has handled numerous complex designs, such as: parts with deep ribs and thick sections prone to sink marks, which we mitigate by optimizing gate location, cooling, and using techniques like gas-assist molding; precision components with tight tolerances, which we maintain using high-precision molds, strict process control, and Statistical Process Control (SPC); and parts with undercuts, which require complex mold actions like sliders and lifters – our specialized mold designers are adept at engineering these moving mechanisms for successful part ejection. Furthermore, for small or fragile parts, we utilize three-plate molds or hot runner systems to minimize gate vestige and enhance automation.

Regarding technical capabilities, we rely on advanced tools: We use mold filling simulation software like Moldflow to simulate the plastic flow, packing, and cooling phases before cutting steel. This allows us to predict and resolve potential issues like short shots, air traps, weld lines, and warpage virtually. This proactive approach optimizes the mold design and process parameters, saving significant time and cost. Our workshop is equipped with 5-axis CNC machining centers, precision wire EDM, and sinker EDM machines, enabling us to fabricate molds with complex geometries and high surface finishes. We are committed to partnering with our clients to transform intricate designs into high-quality, manufacturable injection molded parts.

"What dimensional tolerances can you guarantee for your injection molded products?"

Our standard molding tolerance is ±0.05mm, precision molding achieves ±0.01mm, and ultra-precision special projects can reach ±0.005mm.

Tolerance capability depends on material properties, product design, and mold quality. We conduct DFM analysis during project initiation to establish achievable tolerances. To ensure precision, we employ scientific molding methods with cavity pressure sensors and closed-loop control systems for real-time parameter adjustments.

All precision components are measured in a temperature-controlled environment (20±1°C) using Zeiss CMM equipment. We provide full dimensional reports and implement 100% automated visual inspection for critical dimensions to guarantee batch consistency and reliability

“How do you handle quality issues during the injection molding process?”

Our quality management system is built on IATF 16949 standards, implementing a four-layer protection mechanism: prevention-detection-response-improvement.

At the prevention level, we conduct comprehensive process FMEA analysis to identify potential risks and develop control plans before production begins.

For detection, beyond real-time monitoring of over 30 process parameters, we deploy AI-powered vision inspection systems capable of identifying surface defects as small as 0.01mm invisible to the human eye.

Our three-tier response team (operators-process engineers-quality director) ensures problem handling initiates within 2 hours with preliminary assessment completed within 4 hours. For batch issues, we implement a “red-yellow-green” alert system, with the highest level triggering cross-functional war room meetings. Root cause analysis employs the 8D methodology combined with our injection molding big data analytics platform for precise problem identification.

Corrective actions undergo DOE validation testing before implementation to ensure effectiveness. We provide a transparent issue tracking portal where clients can monitor resolution progress in real-time. After each quality issue closure, we update our FMEA database and control plans, transforming experience into preventive capability. Over the past three years, our customer complaint rate has decreased by 78%, demonstrating the effectiveness of our quality system.

“How long does it take from mold completion to mass production?”

From mold completion to stable mass production typically requires 2-4 weeks, depending on product complexity, material characteristics, and quality standards.

Our four-phase process ensures a smooth transition:

Phase one (3-5 days) involves mold validation and process development, including dimensional verification, Moldflow simulation comparison, gate balance testing, and 10-15 rounds of parameter optimization to determine optimal temperature and pressure profiles.

Phase two (5-7 days) executes trial production of 300-500 samples for comprehensive validation: critical dimensions measured via CMM, material physical property testing, functional assembly verification, while establishing First Article Inspection Reports (FAIR) and control plans.

Phase three (7-10 days) conducts pre-production runs (1,000-5,000 pieces) to refine cycle times, optimize automation workflows, train core operators, implement Statistical Process Control (SPC) systems, and validate quality control checkpoints.

The final phase (3-5 days) completes the PPAP documentation package (including dimensional reports, material certifications, performance test data) before customer approval and initial production launch. To accelerate the process, we offer concurrent engineering: forming project teams during late mold manufacturing stages to pre-develop process parameters, design inspection fixtures, and plan logistics.

For urgent projects, our express track process allocates additional engineering resources, extends working hours, and streamlines non-critical validations, compressing the total timeline to 10-12 days while maintaining uncompromised quality standards.

“How to ensure product consistency in mass production?”

We ensure mass production consistency through a comprehensive, multi-tiered quality assurance system. First, we implement scientific molding methodology to establish robust process windows through Design of Experiments (DOE) to determine optimal parameter combinations, with cavity pressure sensors providing real-time monitoring of fill consistency for every shot.

Second, our comprehensive preventive maintenance program includes daily precision calibration of all equipment, with critical components tracked through lifecycle management systems and replaced proactively before failures occur.

Third, stringent material control protocols establish full traceability chains for all raw materials, including incoming physical property testing and material-specific drying procedures before processing to ensure consistent material behavior.

Fourth, we deploy advanced Statistical Process Control (SPC) systems that monitor critical dimensions and performance characteristics with dynamic control limits, triggering automatic alerts and machine stops when variations exceed thresholds.

Finally, our digital traceability platform captures over 300 process parameters for each production batch, storing data in the cloud for 15 years with secure client access to key quality metrics. Additionally, we conduct regular process capability analysis (targeting Cpk≥1.67) to continuously refine our process windows, ensuring consistent quality even during 24/7 continuous production runs at maximum capacity.

“What factors affect the cost of injection molding?”

Injection molding costs are influenced by multiple interconnected factors that must be holistically evaluated. First, tooling investment constitutes the most significant upfront cost, determined by mold complexity, number of cavities, steel grade selection, and expected lifecycle—high-precision molds for million-cycle production require premium materials and craftsmanship, while prototype molds can utilize lower-cost alternatives.

Material selection directly impacts per-part costs, with engineered resins like PEEK or glass-filled nylon costing 3-5 times more than commodity plastics like PP or ABS.

Part geometry affects both mold complexity and cycle time—thick sections require longer cooling times, while undercuts necessitate complex slide mechanisms.

Production volume dramatically influences unit economics through amortization; high volumes distribute tooling costs across more parts while enabling automation investments that reduce labor costs.

Tolerance requirements also play a critical role—precision components requiring ±0.01mm tolerances demand specialized equipment, rigorous process control, and higher scrap rates.

Secondary operations such as ultrasonic welding, pad printing, or assembly add substantial labor and equipment costs.

Finally, geographical considerations including labor rates, energy costs, and regulatory compliance requirements create significant regional cost variations. Understanding these factors enables strategic cost optimization through design simplification, smart material selection, and production volume planning—our engineering team works with clients during the design phase to identify cost-saving opportunities without compromising functionality or quality standards.
