Custom Precision Molds For Electric Motor
We specialize in customizing precision injection molds for motor components, including motor stators, rotors, and end covers. We excel at leveraging the characteristics of composite materials such as BMC and PBT to optimize motor performance. Our technical solutions can reduce defect rates by 30% and increase production efficiency by 22% for servo motors, DC motors, and AC motors.
Our Differentiated Electric Motor Molds Service
Electric motor molds are not limited to metal stamping or die-casting molds; they also include molds used for injection molding critical plastic components inside motors. These components include motor housings, insulating frames (insulators), encapsulated stators, end caps, and plastic magnetic rotors. These molds are designed to meet the growing demands of modern motors for reliability, insulation performance, and manufacturing efficiency.
Unlike ordinary injection molds, electric motor molds need to comprehensively consider material properties (such as BMC thermosetting, plastic magnetic composite materials, and engineering plastics), dimensional stability, assembly accuracy, and the economics of mass production.
Wontech specialize in the R&D, design, and manufacturing of BMC(Bulk Molding Compound) Motor Molds and Plastic Bonded Magnet Motor Molds, delivering end-to-end customized solutions from precision design to high-volume production, ensuring high accuracy, efficiency, and exceptional reliability.
In addition, we can provide customized mold services for various types of electric motor components, including: servo motor molds, DC motor molds, AC motor molds, plastic edge-embedded motor molds, plastic-encapsulated adjustable motor molds, wound motor molds, motor cover molds, motor end cover molds, motor bracket molds, motor stator molds, motor rotor molds, washing machine motor molds, air conditioner motor molds, refrigerator motor molds, etc.
Case Studies

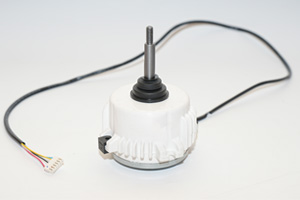

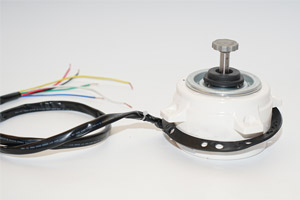

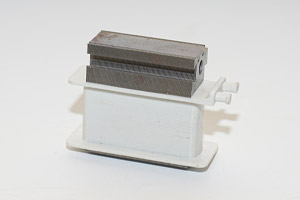

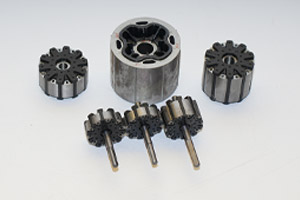

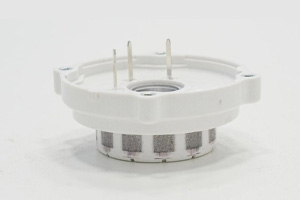

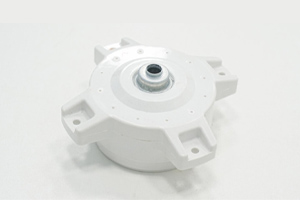

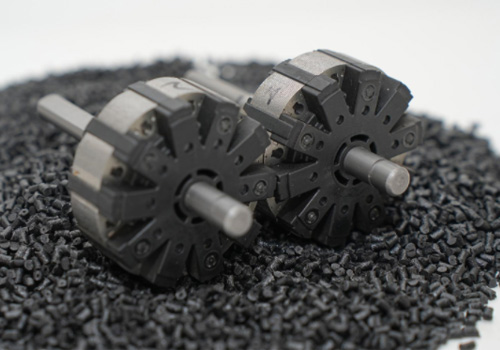

Product Samples

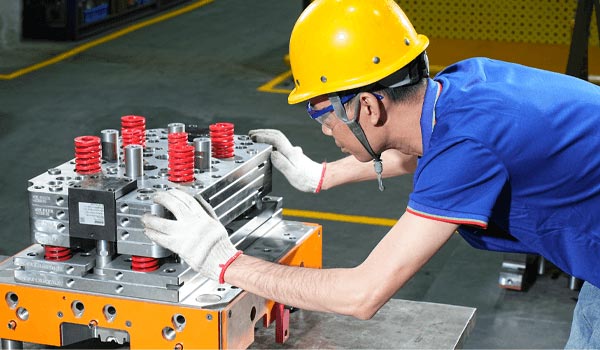

Our Core Technical Advantages
We specialize in electric motor mold manufacturing, using precise design to eliminate production downtime. Say goodbye to cracked casings, detached magnets, and mold failures. Every minute of operation generates profit, changing the industry reality of $2,500/hour losses due to downtime.
Multi-material Precision Injection Molding Process
Utilizing a dynamic pressure compensation system, this process achieves molecular-level uniform distribution of special engineering materials such as BMC, plastic magnets, and insulation materials during injection molding, resolving component deformation issues caused by differences in shrinkage rates in thermosetting composite plastics.
Magnetic Field Alignment Technology
Magnetic Field Oriented Molding Technology: Embedding a programmable electromagnetic field module within the injection mold allows for real-time magnetic field orientation of magnetic composite materials, ensuring precise magnet alignment within the component (accuracy ±0.05°).
Mold Life Prediction and Optimization System
Based on a Material-Process-Structure 3D Database, this AI-driven wear prediction model increases mold life by 40% (Industry average 15,000 cycles → 21,000 cycles).
Our Core Technical Advantages
We specialize in motor mold manufacturing, using precise design to eliminate production downtime. Say goodbye to cracked casings, detached magnets, and mold failures. Every minute of operation generates profit, changing the industry reality of $2,500/hour losses due to downtime.
Multi-material Precision Injection Molding Process
Utilizing a dynamic pressure compensation system, this process achieves molecular-level uniform distribution of special engineering materials such as BMC, plastic magnets, and insulation materials during injection molding, resolving component deformation issues caused by differences in shrinkage rates in thermosetting composite plastics.
Magnetic Field Alignment Technology
Magnetic Field Oriented Molding Technology: Embedding a programmable electromagnetic field module within the injection mold allows for real-time magnetic field orientation of magnetic composite materials, ensuring precise magnet alignment within the component (accuracy ±0.05°).
Mold Life Prediction and Optimization System
Based on a Material-Process-Structure 3D Database, this AI-driven wear prediction model increases mold life by 40% (Industry average 15,000 cycles → 21,000 cycles).

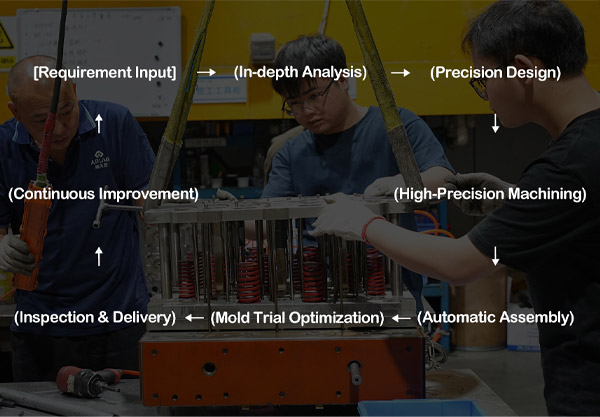

How To Parnter With Us To Develop Your Electric Motor Molds
The superior performance of an electric motor begins with the precision manufacturing of its molds. We treat the creation of each electric motor mold as a rigorous systems engineering project. This is our core process from understanding requirements to delivering the finished product, ensuring that what we deliver to you is not just a mold, but a reliable commitment to quality.
01. In-depth Analysis
Input your drawings and requirements for a technical feasibility assessment
02. Precision Design
Complete digital design including simulation verification and output machining instructions
03. High-Precision Machining
Utilize equipment such as wire EDM to transform the design into precision parts
04. Automated Assembly
Assemble and integrate automated units to complete the mold body
05. Trial Production and Optimization
Conduct trial production, adjust to optimal conditions, and produce qualified samples
06. Inspection and Delivery
Perform comprehensive inspection on the samples; deliver the complete set upon passing inspection.
07. Continuous Improvement
The end point of the process is also the starting point for improvement; experience is fed back to future program
Our Quality Control Standards
Factors affecting the quality of electric motor molds typically include maintenance cycle and cost, dimensional stability, surface roughness, material utilization, demolding, and auxiliary production cycles. We have established a rigorous control system from the design stage to after-sales support to ensure that every mold you receive is reliable and receives professional support throughout its entire lifespan.
Precision Control Standards
We understand that the precision of electric motor molds directly determines the performance and efficiency of the motor. Therefore, from the core precision of individual parts, assembly and motion precision to comprehensive testing of the final assembly, our internal standards far exceed industry-standard requirements.
Precision Prediction in the Design Phase
Material shrinkage and warpage trends are predicted through mold flow analysis, allowing for early optimization of gate location and cooling system layout, ensuring dimensional stability of the mold during mass production.
High-Precision Assurance in the Machining Process
Key cavities, sliders, and inserts are machined using high-precision equipment such as five-axis machining centers and slow wire EDM, with process inspection using a coordinate measuring machine to ensure that the machining accuracy of mold parts is controlled within ±0.005mm.
Assembly Accuracy Verification
After mold assembly, specific tests are conducted on mold closing accuracy, ejection balance, and slider fit clearance to ensure smooth mold operation and zero mold closing offset, guaranteeing minimal flash and uniform wall thickness of parts from the outset.
Mold Life and ROI Quantification
A well-designed, well-manufactured, long-life mold, while requiring a slightly higher initial investment, delivers lower amortized costs per unit, fewer production interruptions, and more consistent part quality in mass production of millions of units.We are committed to designing every mold with the goal of “optimal overall cost,” ensuring a longer-term return on your investment.
|

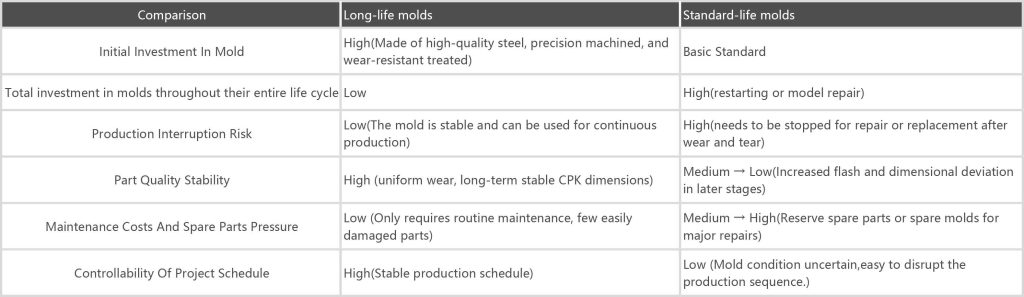

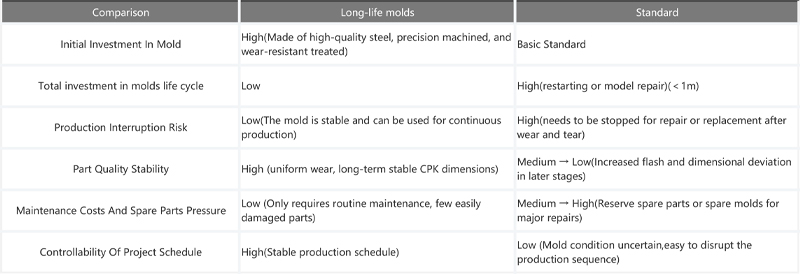

Comparison
|
Long-life molds
|
Standard-life molds
|
|---|---|---|
|
Initial Investment In Mold
|
High(Made of high-quality steel, precision machined, and wear-resistant treated)
|
Basic Standard
|
|
Total investment in molds throughout their entire life cycle
|
Low
|
High(restarting or model repair)
|
|
Production Interruption Risk
|
Low(The mold is stable and can be used for continuous production)
|
High(needs to be stopped for repair or replacement after wear and tear)
|
|
Part Quality Stability
|
High (uniform wear, long-term stable CPK dimensions)
|
Medium → Low(Increased flash and dimensional deviation in later stages)
|
|
Maintenance Costs And Spare Parts Pressure
|
Low (Only requires routine maintenance, few easily damaged parts)
|
Medium → High(Reserve spare parts or spare molds for major repairs)
|
|
Controllability Of Project Schedule
|
High(Stable production schedule)
|
Low (Mold condition uncertain,easy to disrupt the production sequence.)
|
Unique Design For Materials
We don’t just manufacture electric motor molds; we provide integrated engineering solutions encompassing materials, processes, and molds to meet the specific needs of precision motors.
Wear-Resistant and Corrosion-Resistant Design of BMC Thermosetting Molds
- Addressing the high abrasiveness of glass fiber in BMC materials, hard alloy inlays or wear-resistant coatings are used on the cavity and gate areas, significantly extending the mold’s service life under harsh material conditions.
- Optimized venting system and parting surface design reduce post-processing costs.
- A rationally designed waste material collection structure improves material utilization.
Magnetic Field Orientation and Thermal Balance Design of Plastic Bonded Magnet Motor Molds
- To meet the magnetic performance requirements of plastic-magnetic materials (plastic-bonded magnets), magnetic field orientation conditions are reserved during the mold design stage to ensure stable and consistent magnetic flux after molding.
- Conformal cooling technology is used to optimize the mold temperature field distribution, avoiding magnetic performance fluctuations and part warping caused by temperature differences.
- Precise control of gate position and filling speed ensures uniform distribution of magnetic powder and plastic matrix.
Modular Design with Multi-Material Compatibility
- The mold structure adopts a modular design, with some modules adaptable to the molding requirements of different materials, reducing the mold investment for customers developing multiple projects.
- Automation interfaces are reserved to support subsequent automation upgrades such as insert injection molding, automatic part removal, and online inspection.
- High-quality mold steel is selected and combined with vacuum quenching and deep cryogenic treatment to ensure stable precision throughout the mold’s entire life cycle.
Our Quality Control Standards
Factors affecting the quality of electric motor molds typically include maintenance cycle and cost, dimensional stability, surface roughness, material utilization, demolding, and auxiliary production cycles. We have established a rigorous control system from the design stage to after-sales support to ensure that every mold you receive is reliable and receives professional support throughout its entire lifespan.
Precision Control Standards
We understand that the precision of electric motor molds directly determines the performance and efficiency of the motor. Therefore, from the core precision of individual parts, assembly and motion precision to comprehensive testing of the final assembly, our internal standards far exceed industry-standard requirements.
Precision Prediction in the Design Phase
Material shrinkage and warpage trends are predicted through mold flow analysis, allowing for early optimization of gate location and cooling system layout, ensuring dimensional stability of the mold during mass production.
High-Precision Assurance in the Machining Process
Key cavities, sliders, and inserts are machined using high-precision equipment such as five-axis machining centers and slow wire EDM, with process inspection using a coordinate measuring machine to ensure that the machining accuracy of mold parts is controlled within ±0.005mm.
Assembly Accuracy Verification
After mold assembly, specific tests are conducted on mold closing accuracy, ejection balance, and slider fit clearance to ensure smooth mold operation and zero mold closing offset, guaranteeing minimal flash and uniform wall thickness of parts from the outset.
Mold Life and ROI Quantification
A well-designed, well-manufactured, long-life mold, while requiring a slightly higher initial investment, delivers lower amortized costs per unit, fewer production interruptions, and more consistent part quality in mass production of millions of units.We are committed to designing every mold with the goal of “optimal overall cost,” ensuring a longer-term return on your investment.
Unique Design For Materials
Wear-Resistant and Corrosion-Resistant Design of BMC Thermosetting Molds
- Addressing the high abrasiveness of glass fiber in BMC materials, hard alloy inlays or wear-resistant coatings are used on the cavity and gate areas, significantly extending the mold’s service life under harsh material conditions.
- Optimized venting system and parting surface design reduce post-processing costs.
- A rationally designed waste material collection structure improves material utilization.
Magnetic Field Orientation and Thermal Balance Design of Plastic Bonded Magnet Motor Molds
- To meet the magnetic performance requirements of plastic-magnetic materials (plastic-bonded magnets), magnetic field orientation conditions are reserved during the mold design stage to ensure stable and consistent magnetic flux after molding.
- Conformal cooling technology is used to optimize the mold temperature field distribution, avoiding magnetic performance fluctuations and part warping caused by temperature differences.
- Precise control of gate position and filling speed ensures uniform distribution of magnetic powder and plastic matrix.
Modular Design with Multi-Material Compatibility
- The mold structure adopts a modular design, with some modules adaptable to the molding requirements of different materials, reducing the mold investment for customers developing multiple projects.
- Automation interfaces are reserved to support subsequent automation upgrades such as insert injection molding, automatic part removal, and online inspection.
- High-quality mold steel is selected and combined with vacuum quenching and deep cryogenic treatment to ensure stable precision throughout the mold’s entire life cycle.
FAQ
“What are the core factors determining the final cost of electric motor molds?”
The core factor is the comprehensive technical complexity. Besides steel, the real cost drivers are:
1. Design complexity (e.g., multi-station progressive machining, automated insert integration)
2. Materials technology (using powder metallurgy high-speed steel or cemented carbide can be several times more expensive than ordinary steel)
3. Precision level (for every micrometer-level improvement in tolerance, processing and inspection costs increase exponentially)
4. Lifespan standard (the design, material, and process investment required for a commitment of 100 million strokes is vastly different from that for 50 million strokes).
Therefore, purchasing molds is essentially a critical investment in the performance, efficiency, and long-term production costs of the final product, rather than simply comparing prices.
“What types of electric motor molds do you primarily manufacture? What are the differences between BMC and plastic bonded magnet motor molds?”
We specialize in injection molds for all types of motors, particularly BMC thermoset motor molds and plastic bonded magnet motor molds.
BMC molds are used to produce structural components such as motor housings, insulating frames, and end caps. BMC material offers excellent high-temperature resistance, corrosion resistance, and dimensional stability, making it suitable as a replacement for metal parts.
Plastic bonded magnet motor molds are used to produce functional components such as rotor magnetic rings and sensor magnets. Plastic magnetic materials allow for integrated molding of the magnetic circuit, reducing assembly steps and improving the consistency of magnetic properties.
The two differ in material properties, mold design considerations, and application scenarios. We can recommend the most suitable mold solution based on your motor type and performance requirements.
"What are the fundamental differences between servo motor core molds and ordinary household appliance electric motor molds?"
The core difference between servo motor core molds and ordinary household appliance motor molds lies in their performance and precision orientation.
Servo motors prioritize extreme dynamic response and positioning accuracy. Therefore, their molds must ensure extremely low cogging torque in the core and high symmetry in the magnet slots. Slot dimensions and indexing accuracy typically need to be controlled within ±0.002mm, and a special unloading structure is required to prevent deformation of the silicon steel sheet.
In contrast, household appliance motor molds prioritize stability and cost-effectiveness in large-scale production. Manufacturing servo motor molds to the latter’s standards will directly lead to motor torque fluctuations and increased noise, completely failing to meet the performance requirements of high-precision servo systems and affecting the overall reliability and lifespan of motion control.
“What is the difference between electric motor molds for plastic encapsulation and ordinary injection molds?”
Molds for plastic-encapsulated motor components fundamentally differ from standard injection molds in design philosophy, material processing, and functional specifications. Electric motor molds are specifically engineered for electrical applications (e.g., housings, insulation end caps, stator encapsulation), utilizing thermoset materials like BMC (Bulk Molding Compound) processed via compression or overmolding to achieve superior electrical insulation, heat resistance, and mechanical integrity. Their design incorporates critical features such as thermal management channels, electrical isolation grooves, and micron-level dimensional tolerances to comply with stringent motor safety standards (e.g., IEC 60034).
In contrast, standard injection molds target general-purpose thermoplastics (e.g., PP, ABS) using conventional injection molding, prioritizing high-volume production efficiency, surface finish, and cost-effectiveness without specialized electrical or thermal requirements.
For instance, electric motor molds require precise temperature control (150–200°C) for BMC curing, while standard molds operate at lower ranges (80–120°C); electric motor molds also demand higher mold steel hardness (HRC 50+) to withstand abrasive thermoset materials, versus standard molds (HRC 35–45) focused on affordability. This distinction elevates electric motor mold reliability by over 40% compared to generic molds, making them indispensable for precision applications like servo and HVAC motors.
“What are the key indicators and methods for precision inspection of electric motor molds?”
The core indicators for precision inspection of motor molds fall into three main categories: geometric accuracy, functional accuracy, and process stability. For geometric accuracy, the primary focus is on the stator/rotor slot dimensions. A coordinate measuring machine (CMM) is used to measure slot width, slot spacing, and concentricity, with an accuracy requirement of ±0.005mm. The flatness and perpendicularity of the stacked iron core are also crucial; a laser scanner can quickly acquire three-dimensional data.
Functional accuracy inspection is more complex, including magnetic performance verification: iron loss, magnetic flux density, and stacking factor are measured using a dedicated test bench. A high-quality mold should achieve a stacking factor of over 95%.
Dynamic balancing is critical for rotor molds; the imbalance must be controlled below 0.5 g·cm. Process stability is achieved through SPC (Statistical Process Control), with the critical dimension CPK value greater than 1.67.
In terms of inspection methods, we adopt a hierarchical strategy: first-piece full-size inspection (using a CMM and optical comparator); automated online inspection during production (sensors installed inside the mold monitor key points in real time); and periodic downtime depth inspection (once a week). For BMC motor components, additional electrical performance tests are required, such as withstand voltage testing (2500V/1min) and insulation resistance measurement (>100MΩ).
Furthermore, we establish a “mold file” to record data from each test, analyze it promptly, and predict future needs. While this comprehensive testing system increases upfront costs, it significantly reduces production risks for our customers.
“How long does the development cycle for electric motor molds typically take?”
The development cycle for motor molds varies depending on complexity. Standard motor stator molds typically take 8-10 weeks, high-precision BMC motor component molds take 10-12 weeks, while complex multi-station progressive dies can take as long as 14-16 weeks.
This timeline includes requirements analysis (1 week), 3D design (1.5-2 weeks), CAE simulation (3-5 days), machining and manufacturing (3-4 weeks), assembly and debugging (1-1.5 weeks), and trial molding verification (1-2 weeks).
Based on customer needs, we optimize the timeline through process reengineering and technological innovation.
“What parameters should be focused on during the trial molding stage of electric motor molds, and how to determine whether the mold is qualified?”
The primary concern is dimensional accuracy, especially stator slot width, slot spacing, and inner diameter. At least 20 consecutive samples should be inspected using high-precision measuring equipment (such as a coordinate measuring machine) to calculate the CPK value (≥1.67) and ensure dimensional stability.
The core stacking factor is a core indicator of motor performance. Through precise weighing and volume measurement, a qualified core stacking factor should reach 95% or higher. A factor below 92% indicates excessive burrs or insufficient flatness. Electromagnetic performance testing is crucial. Iron loss (W/kg) and magnetic induction intensity should be measured using a professional testing platform, with deviations from design values less than 5%. For permanent magnet motor rotors, the uniformity of magnetic flux distribution must also be tested.
Regarding surface quality, the stamped surface of silicon steel sheets should exhibit an ideal “bright band/fracture band” ratio (60:40). A 50x magnifying glass should be used to inspect burr height (≤0.005mm) and the quality of the stamped surface.
For BMC motor components, attention must be paid to air marks, exposed fiberglass, and shrinkage deformation, especially in areas with electrical clearances, which must be 100% defect-free. Process stability is verified through 8 consecutive hours of production testing, collecting data such as mold temperature, stamping pressure, and product weight. The fluctuation range should be less than ±3%.
To determine mold qualification, we use a scoring system: key performance (dimensions, electromagnetic characteristics) accounts for 60%, process stability for 25%, and ease of maintenance for 15%, with a total score exceeding 85 points.
Mold trials are not only an acceptance process but also an opportunity for optimization. We meticulously record every data point, creating a “mold file” to provide a benchmark for subsequent production.
FAQ
“What are the core factors determining the final cost of motor molds?”
The core factor is the comprehensive technical complexity. Besides steel, the real cost drivers are:
1. Design complexity (e.g., multi-station progressive machining, automated insert integration)
2. Materials technology (using powder metallurgy high-speed steel or cemented carbide can be several times more expensive than ordinary steel)
3. Precision level (for every micrometer-level improvement in tolerance, processing and inspection costs increase exponentially)
4. Lifespan standard (the design, material, and process investment required for a commitment of 100 million strokes is vastly different from that for 50 million strokes).
Therefore, purchasing molds is essentially a critical investment in the performance, efficiency, and long-term production costs of the final product, rather than simply comparing prices.
“How to improve motor energy efficiency from a die-cutting perspective?”
The molds directly determines the geometric accuracy and material condition of the iron core.
Through high-precision blanking, the burrs on silicon steel sheets can be controlled below 0.01mm, significantly reducing eddy current losses caused by burrs.
Through optimized riveting design, the core stacking coefficient can be increased to over 98.5%, effectively reducing air gap reluctance in the magnetic circuit.
We have previously helped a customer reduce the iron loss of a permanent magnet motor by approximately 12% by optimizing the blanking clearance and cross-sectional quality of the stator slot die, directly improving the overall energy efficiency of the motor.
"What are the fundamental differences between servo motor core molds and ordinary household appliance motor molds?"
The core difference between servo motor core molds and ordinary household appliance motor molds lies in their performance and precision orientation.
Servo motors prioritize extreme dynamic response and positioning accuracy. Therefore, their molds must ensure extremely low cogging torque in the core and high symmetry in the magnet slots. Slot dimensions and indexing accuracy typically need to be controlled within ±0.002mm, and a special unloading structure is required to prevent deformation of the silicon steel sheet.
In contrast, household appliance motor molds prioritize stability and cost-effectiveness in large-scale production. Manufacturing servo motor molds to the latter’s standards will directly lead to motor torque fluctuations and increased noise, completely failing to meet the performance requirements of high-precision servo systems and affecting the overall reliability and lifespan of motion control.
“What are the main differences between motor molds and ordinary injection molds?”
Motor molds and ordinary injection molds differ fundamentally in design principles, precision requirements, and material selection. Motor molds primarily include stamping dies for the stator and rotor cores, rather than traditional injection molds.
The core differences are: motor stamping dies must handle the high-precision stacking of special electromagnetic materials such as silicon steel sheets, with tolerances typically controlled at ±0.005mm, far exceeding those of ordinary molds; the mold structure must consider electromagnetic performance optimization, such as the slot design directly affecting motor efficiency and noise; the working environment is more demanding, with high-speed stamping (typically 150-300 SPM) posing significant wear challenges.
Furthermore, motor molds need to integrate special functions such as automatic stacking and deburring systems to ensure a core stacking coefficient of over 95%. In terms of material selection, core components of motor molds often use powder metallurgy steel instead of ordinary mold steel to resist the continuous wear of the silicon steel sheets.
The testing and verification also differ; motor molds must undergo rigorous electromagnetic performance testing, not just dimensional inspection. This specialization requires a deep background in electrical engineering, rather than just mold manufacturing experience, to develop motor molds. This is also the core value of professional motor mold manufacturers.
“What are the key indicators and methods for precision inspection of motor molds?”
The core indicators for precision inspection of motor molds fall into three main categories: geometric accuracy, functional accuracy, and process stability. For geometric accuracy, the primary focus is on the stator/rotor slot dimensions. A coordinate measuring machine (CMM) is used to measure slot width, slot spacing, and concentricity, with an accuracy requirement of ±0.005mm. The flatness and perpendicularity of the stacked iron core are also crucial; a laser scanner can quickly acquire three-dimensional data.
Functional accuracy inspection is more complex, including magnetic performance verification: iron loss, magnetic flux density, and stacking factor are measured using a dedicated test bench. A high-quality mold should achieve a stacking factor of over 95%.
Dynamic balancing is critical for rotor molds; the imbalance must be controlled below 0.5 g·cm. Process stability is achieved through SPC (Statistical Process Control), with the critical dimension CPK value greater than 1.67.
In terms of inspection methods, we adopt a hierarchical strategy: first-piece full-size inspection (using a CMM and optical comparator); automated online inspection during production (sensors installed inside the mold monitor key points in real time); and periodic downtime depth inspection (once a week). For BMC motor components, additional electrical performance tests are required, such as withstand voltage testing (2500V/1min) and insulation resistance measurement (>100MΩ).
Furthermore, we establish a “mold file” to record data from each test, analyze it promptly, and predict future needs. While this comprehensive testing system increases upfront costs, it significantly reduces production risks for our customers.
“How long does the development cycle for motor molds typically take?”
The development cycle for motor molds varies depending on complexity. Standard motor stator molds typically take 8-10 weeks, high-precision BMC motor component molds take 10-12 weeks, while complex multi-station progressive dies can take as long as 14-16 weeks.
This timeline includes requirements analysis (1 week), 3D design (1.5-2 weeks), CAE simulation (3-5 days), machining and manufacturing (3-4 weeks), assembly and debugging (1-1.5 weeks), and trial molding verification (1-2 weeks).
Based on customer needs, we optimize the timeline through process reengineering and technological innovation.
“What parameters should be focused on during the trial molding stage of motor molds, and how to determine whether the mold is qualified?”
The primary concern is dimensional accuracy, especially stator slot width, slot spacing, and inner diameter. At least 20 consecutive samples should be inspected using high-precision measuring equipment (such as a coordinate measuring machine) to calculate the CPK value (≥1.67) and ensure dimensional stability.
The core stacking factor is a core indicator of motor performance. Through precise weighing and volume measurement, a qualified core stacking factor should reach 95% or higher. A factor below 92% indicates excessive burrs or insufficient flatness. Electromagnetic performance testing is crucial. Iron loss (W/kg) and magnetic induction intensity should be measured using a professional testing platform, with deviations from design values less than 5%. For permanent magnet motor rotors, the uniformity of magnetic flux distribution must also be tested.
Regarding surface quality, the stamped surface of silicon steel sheets should exhibit an ideal “bright band/fracture band” ratio (60:40). A 50x magnifying glass should be used to inspect burr height (≤0.005mm) and the quality of the stamped surface.
For BMC motor components, attention must be paid to air marks, exposed fiberglass, and shrinkage deformation, especially in areas with electrical clearances, which must be 100% defect-free. Process stability is verified through 8 consecutive hours of production testing, collecting data such as mold temperature, stamping pressure, and product weight. The fluctuation range should be less than ±3%.
To determine mold qualification, we use a scoring system: key performance (dimensions, electromagnetic characteristics) accounts for 60%, process stability for 25%, and ease of maintenance for 15%, with a total score exceeding 85 points.
Mold trials are not only an acceptance process but also an opportunity for optimization. We meticulously record every data point, creating a “mold file” to provide a benchmark for subsequent production.
Partner with Us. Engineer Your Success.
- Get Your Motor Efficiency Analysis Report
- Download Motor Mold Guide
- Talk to a Molding Expert
- No.2, South Huatai East Road, Caosan PioneerPark,ZhongShan,Guangdong,China
- +86 13326981626
- ocean.h@wanglai.cn
CAPABILITIES
Copyright ©2025 Wontech | Powered by Wontech.All Rights Reserved.
